Spec Highlights

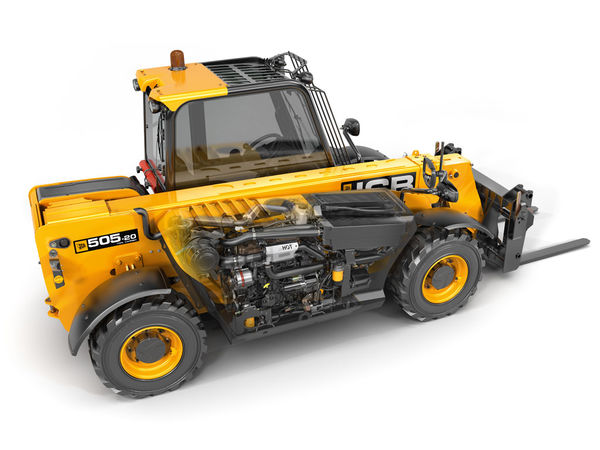

JCB 505-20TC
| Max Lift Capacity | Max Lift Height | Lift Capacity at Max Lift Height | Lift Capacity at Max Reach | Max Reach |
| 1,750 lbs. | Up to 20’ | Up to 3,900 lbs. | Up to 1,750 lbs. | 11’6” |
JCB 514-56
| Max Lift Capacity | Max Lift Height | Lift Capacity at Max Lift Height | Lift Capacity at Max Reach | Max Reach |
| 14,000 lbs | Up to 56’ | Up to 5,000 lbs | Up to 3,500 lbs | 42 |
JCB 512-56
| Max Lift Capacity | Max Lift Height | Lift Capacity at Max Lift Height | Lift Capacity at Max Reach | Max Reach |
| 12,000 lbs. | up to 56’ | Up to 5,000 lbs | Up to 3,500 lbs | 42 |

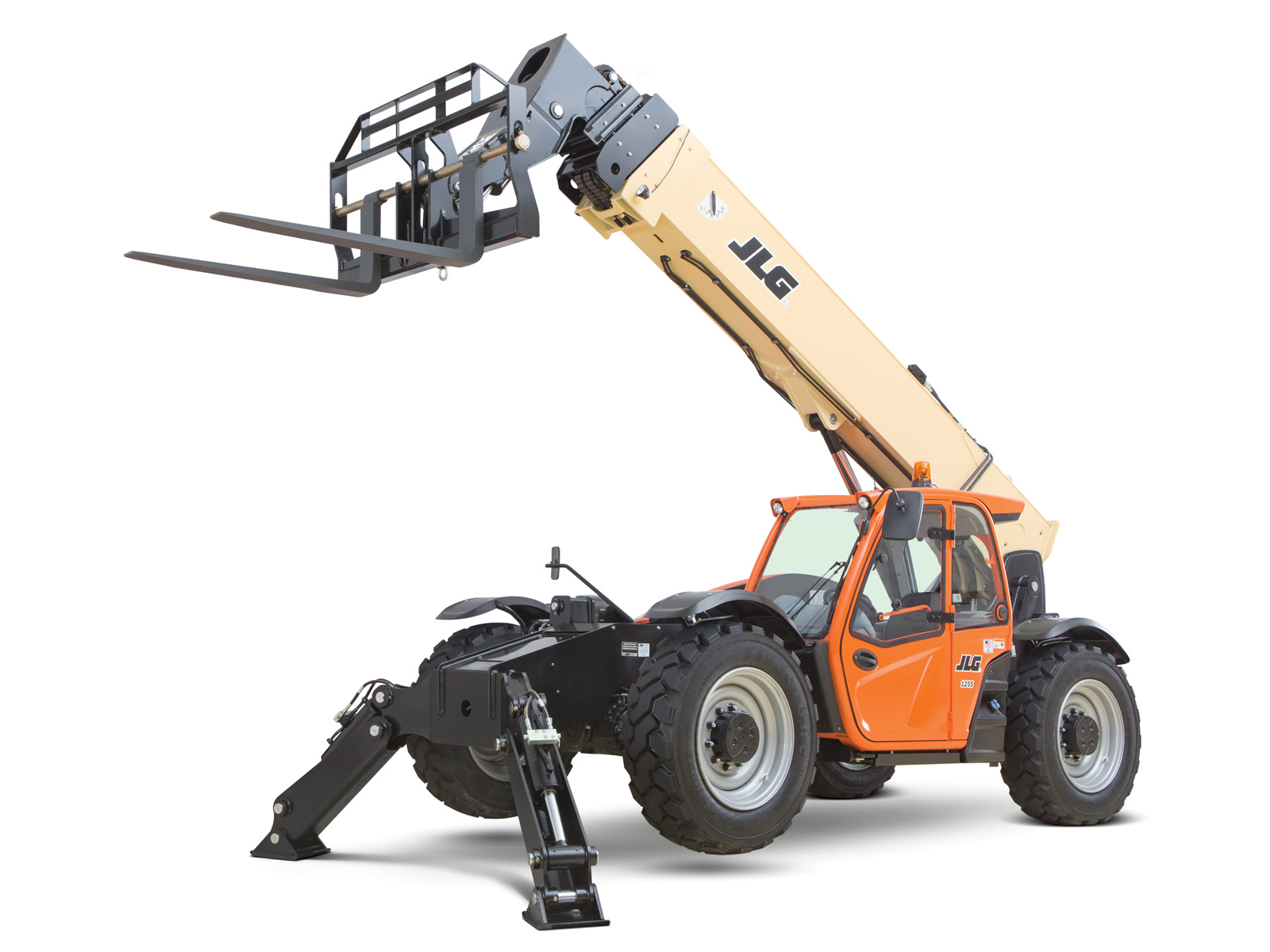

JLG 1255
| Max Lift Capacity | Max Lift Height | Lift Capacity at Max Lift Height | Lift Capacity at Max Reach | Max Reach |
| 12,000 lbs | up to 55’ | Up to 5,000 lbs | Up to 3,500 lbs | 42 |

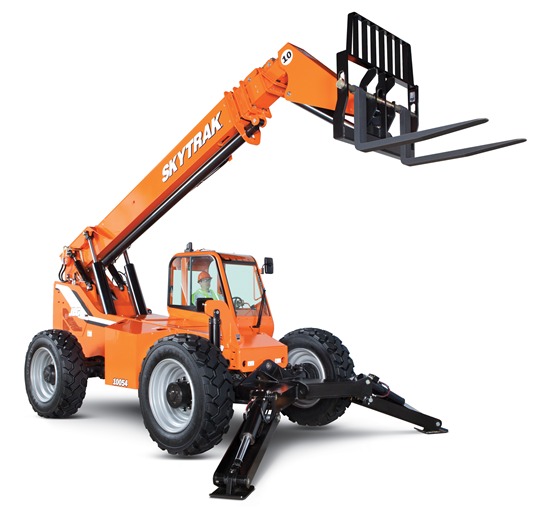

SkyTrak 10054
| Max Lift Capacity | Max Lift Height | Lift Capacity at Max Lift Height | Lift Capacity at Max Reach | Max Reach |
| 10,000 lbs | Up to 53” 2’ | Up to 4,000 lbs | Up to 3,000 lbs | 38’ 9” |

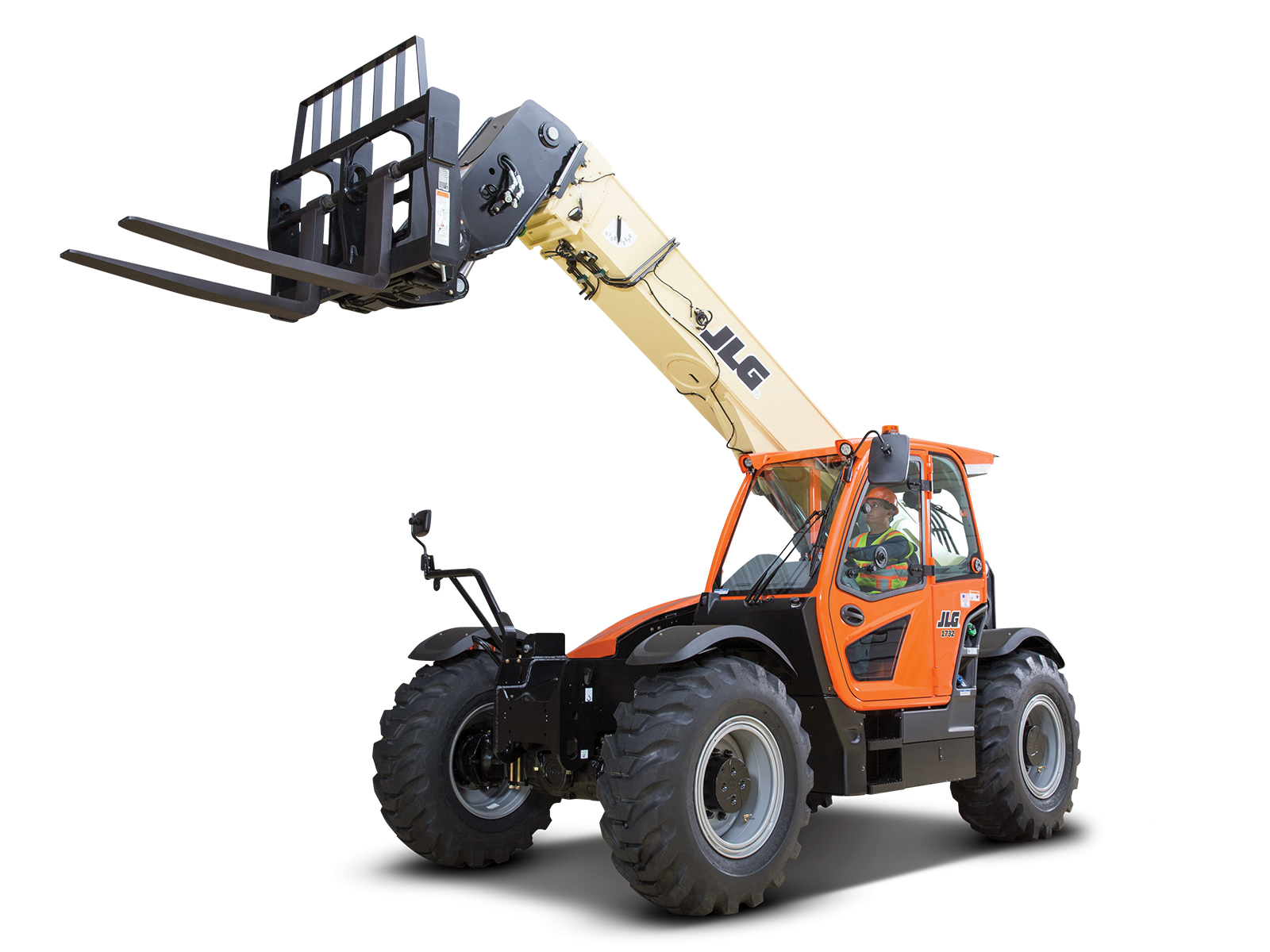

JLG 1055
| Max Lift Capacity | Max Lift Height | Lift Capacity at Max Lift Height | Lift Capacity at Max Reach | Max Reach |
| 10,000 lbs | Up to 55’ | Up to 5,000 lbs | Up to 3,000 lbs | 42’ |
JCB 510-56
| Max Lift Capacity | Max Lift Height | Lift Capacity at Max Lift Height | Lift Capacity at Max Reach | Max Reach |
| 10,000 lbs. | Up to 56’ | Up to 4,000 lbs | Up to 3,000 lbs | 42’ |
Genie GTH-1056
| Max Lift Capacity | Max Lift Height | Lift Capacity at Max Lift Height | Lift Capacity at Max Reach | Max Reach |
| 10,000 lbs | Up to 56’ 10” | Up to 4,000 lbs | Up to 3,000 lbs | 42’ |
JCB 509-42
| Max Lift Capacity | Max Lift Height | Lift Capacity at Max Lift Height | Lift Capacity at Max Reach | Max Reach |
| 9,000 lbs | Up to 42’ | Up to 6,000 lbs | Up to 1,800 lbs | 28’ |

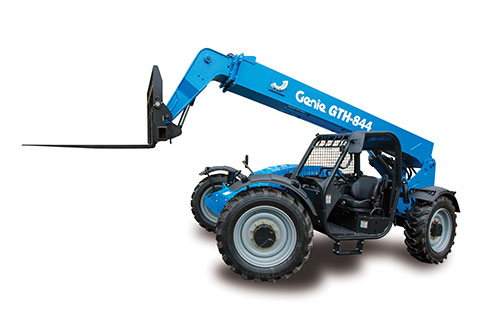

Genie GTH-844
| Max Lift Capacity | Max Lift Height | Lift Capacity at Max Lift Height | Lift Capacity at Max Reach | Max Reach |
| 8,000 lbs | Up to 43’ 10” | Up to 6,000 lbs | Up to 2,000 lbs | 28’ 2” |

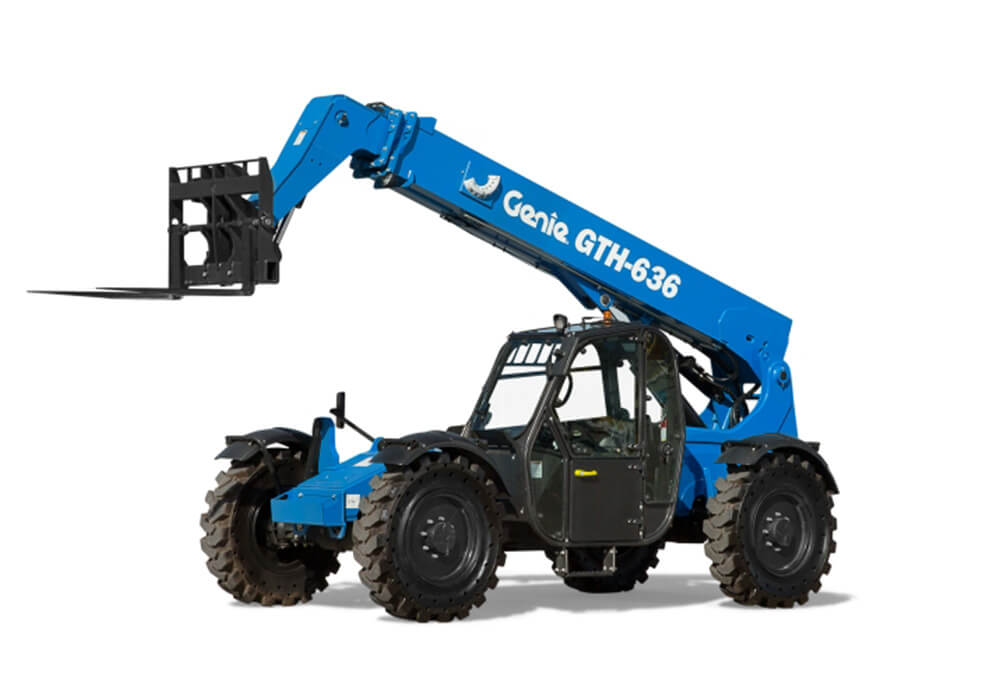

Genie GTH-636
| Max Lift Capacity | Max Lift Height | Lift Capacity at Max Lift Height | Lift Capacity at Max Reach | Max Reach |
| 6,000 lbs | Up to 36’ | Up to 5,000 lbs | Up to 1,500 lbs | 21’ 11” |

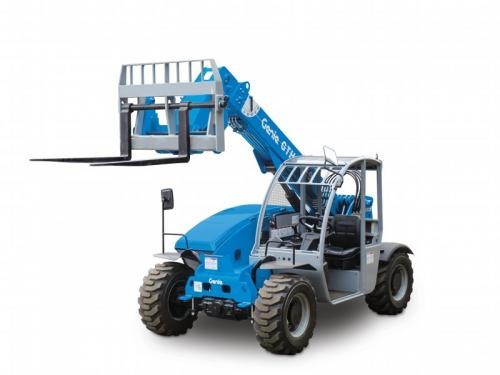

Genie GTH-5519
| Max Lift Capacity | Max Lift Height | Lift Capacity at Max Lift Height | Lift Capacity at Max Reach | Max Reach |
| 5,500 lbs | Up to 18’ 10” | Up to 4,400 lbs | Up to 1,900 lbs | 11’ 3” |
Please Note:
Due to difference specifications and multiple configurations operating weights may vary. Please contact your salesman for exact specifications.
